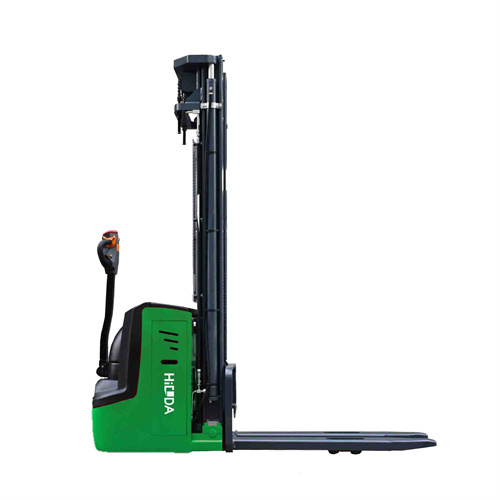

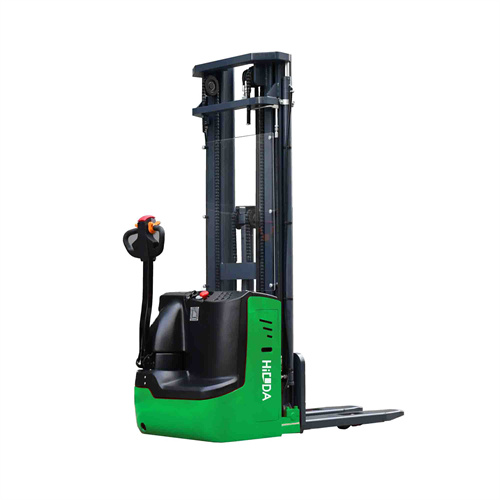

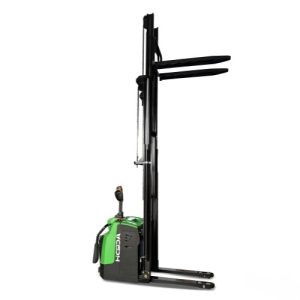

1.6 – 2 ton Electric Walkie Stacker For Small Aisle Width
Hicoda is an experienced manufacturer for electric pallet stackers. Covering capacity of 1.6 to 2 tons, with up to 5 meters lifting height, the compact body design and big battery make our CDDW series electric pallet stackers are suitable for short/mid-distance handling in warehouses or supermarkets.
| Brand | HICODA |
| Model | CDDW16/20 |
| Capacity | 1.6- 2 tons |
| Lifting Height | 1.6 – 5 meters |
| Shipping Port | Hefei / Nanjing / Shanghai, China |
Product Categories
OPERATION VIDEO
ADVANTAGES
- Curtis controller with excellent performance
- Free-maintenance AC drive motor
- Side pull battery design for easy operation
- Small turning radius design for narrow aisle
- Strong structure for durable use
- All-round safety guarantees
TECHNICAL PARAMETERS
| Manufacturer | HICODA | ||
| Model | CDDW16 | CDDW20 | |
| Power type | Battery | ||
| Driving style | Walkie | ||
| Rated load | Q(kg) | 1600 | 2000 |
| Load center | C(mm) | 600 | |
| Wheelbase | y(mm) | 1290 | |
| Service Weight(incl.battery) | kg | 1130 | 1150 |
| wheel type | PU | ||
| Load wheel size | mm | Φ80×70 | |
| Drive wheel size | mm | Φ230×75 | |
| Stabilizing wheel size | mm | Φ125×50 | |
| Number of wheels,front/rear(x=drive wheel) | 4/1x+1 | ||
| Wheel base,drive-bearing side | b10(mm) | 530 | |
| Wheel base, load-bearing side | b11(mm) | 490 | |
| Mast closed height | h1(mm) | 2025 | |
| Lift height | h3(mm) | 3000 | |
| Mast extended height with load-backrest | h4(mm) | 3500 | |
| Handle height(min/max) | h14(mm) | 700/1300 | |
| Minimum height of fork surface | h13(mm) | 90 | |
| Overall length | l1(mm) | 1990 | |
| Overall width | b1/b2(mm) | 820 | |
| Fork size | l/e/s(mm) | 1150/190/58 | |
| Fork outside width | b5(mm) | 680/570 | |
| Mast ground clearance | m1(mm) | 30 | |
| Aisle width for pallet 1000x1200mm, C=500mm | Ast(mm) | 2375 | |
| Aisle width for pallet 800x1200mm, C=600mm | Ast(mm) | 2375 | |
| Turning radius | Wa(mm) | 1490 | |
| Driving speed, laden/unladen | km/h | 5.0/6.0 | |
| Lifting speed,laden/unladen | mm/s | 90/130 | |
| Lowering speed,laden/unladen | mm/s | 110/130 | |
| Maximum climbing ability, laden/unladen (S2-5min) | %(tanθ ) | ≤6/≤12 | |
| Braking type | Electromagnetic | ||
| Drive motor power (S2-60min) | kw | 1.5 | |
| Lift motor power, (S3-10%) | kw | 2 | |
| Battery, voltage/rated capacity | V/Ah | 24/210 | |
| Battery weight | kg | 180 | |
| steering system | Mechanical steering | ||
| Battery replacement method | Side pull | ||

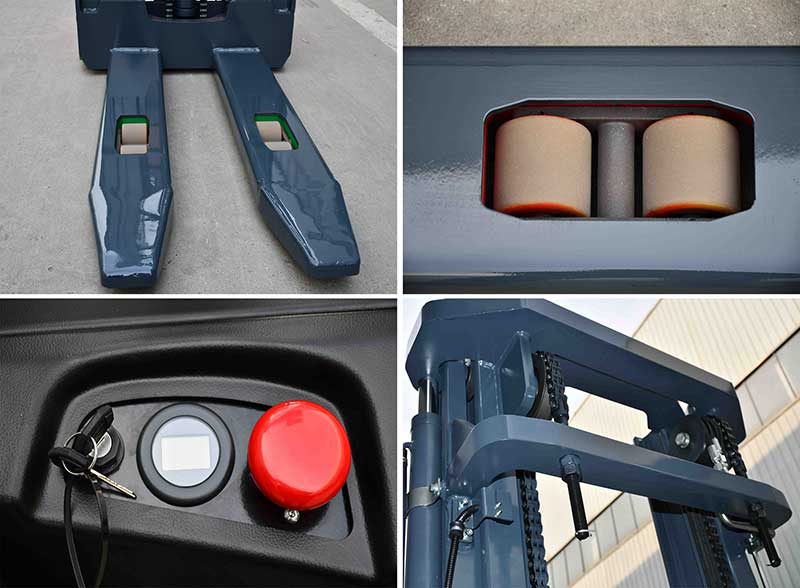

DETAILS
