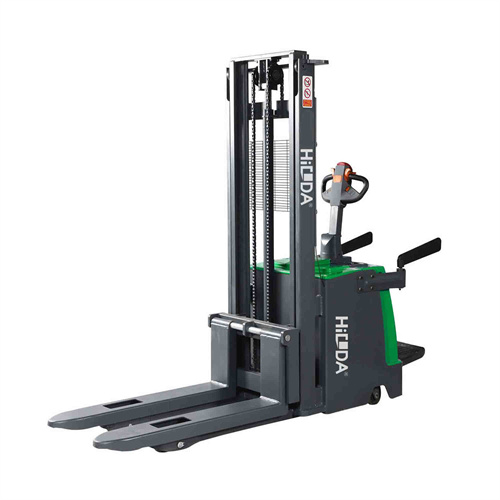

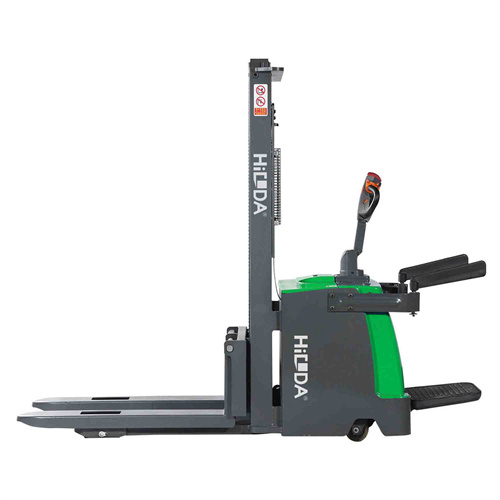

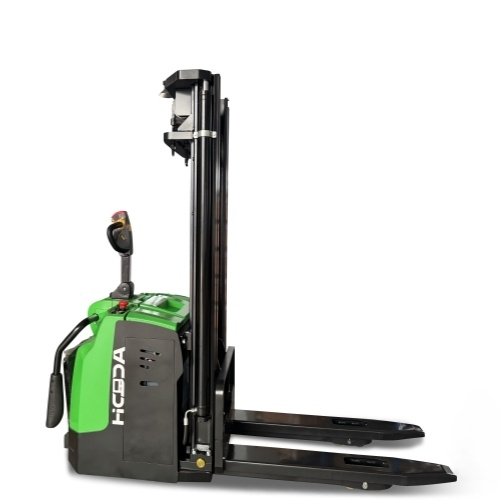

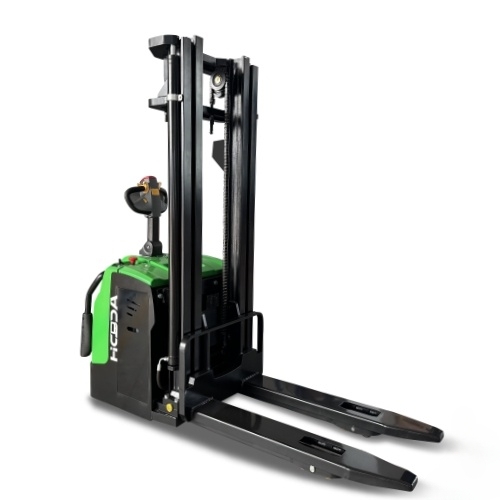

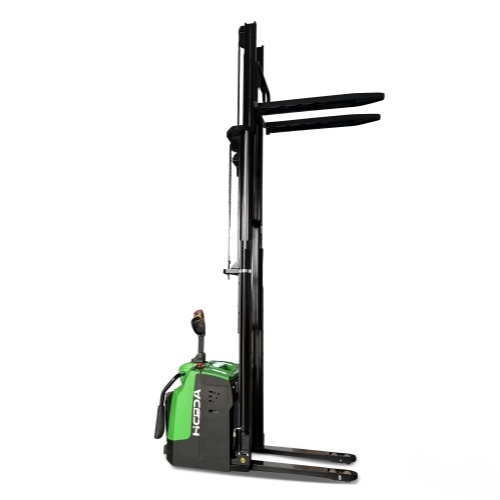

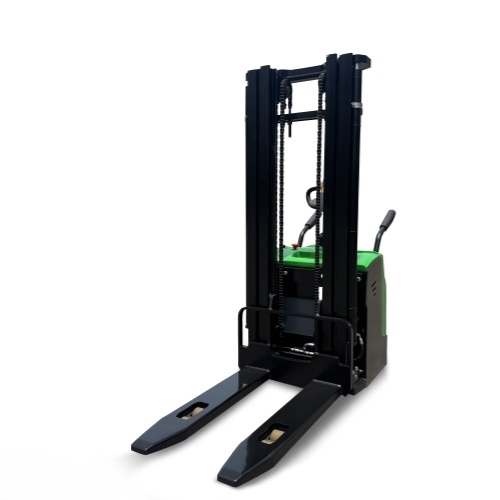

1.5 – 2 ton Electric Stand-On Stacker With AC Drive Motor
Hicoda is a professional manufacturer for electric pallet stackers. Covering capacity of 1.5 to 2 tons, with up to 5.5 meters lifting height, the strong structure and green power make our CDDS series electric pallet stackers are suitable for mid/long-distance handling in warehouses or plants.
| Brand: | HICODA |
| Model: | CDDS15/20 |
| Capacity: | 1.5 – 2 tons |
| Lifting Height: | 1.6 – 5.5 meters |
| Shipping Port: | Hefei / Nanjing / Shanghai, China |
Product Categories
OPERATION VIDEO
ADVANTAGES
- Curtis controller with excellent performance
- Free-maintenance AC drive motor
- Side pull battery design for easy operation
- Standing pedal for long-distance handling

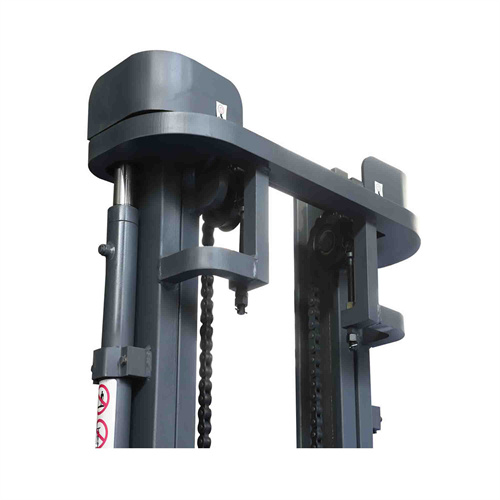

- Strong structure for durable use
- All-round safety guarantees
TECHNICAL PARAMETERS
| Manufacturer | HICODA | ||
| Model | CDDS15 | CDDS20 | |
| Power type | Battery | ||
| Driving style | Stand on | ||
| Rated load | Q(kg) | 1500 | 2000 |
| Load center | C(mm) | 600 | |
| Front overhang | x(mm) | 737 | |
| Wheelbase | y(mm) | 1390 | |
| Service weight(incl.battery) | kg | 1100 | |
| Bridge load at full load, drive side/load-bearing side | kg | 1052/1548 | 1149/1966 |
| Bridge load at unload, drive side/load-bearing side | kg | 795/305 | 807/308 |
| wheel type | PU | ||
| Load wheel size | mm | Φ80×70 | |
| Drive wheel size | mm | Φ230×75 | |
| Stabilizing wheel size | mm | Φ125×50 | |
| Number of wheels,front/rear(x=drive wheel) | 4/1x+2 | ||
| Wheel base,drive-bearing side | b10(mm) | 630/770 | |
| Wheel base, load-bearing side | b11(mm) | 490/380 | |
| Mast closed height | h1(mm) | 2025 | |
| Free lift height | h2(mm) | / | |
| Lift height | h3(mm) | 3000 | |
| Mast extended height with load-backrest | h4(mm) | 3506 | |
| Handle height(min/max) | h14(mm) | 1100/1390 | |
| Minimum height of fork surface | h13(mm) | 90 | |
| Overall length,Pedal retracted | l1(mm) | 2110 | |
| Overall width | b1/b2(mm) | 850/1000 | |
| Fork size | l/e/s(mm) | 1150/190/56 | |
| Fork outside width | b5(mm) | 680/570 | |
| Mast ground clearance | m1(mm) | 30 | |
| Aisle width for pallet 1000x1200mm, C=500mm | Ast(mm) | 2490 | |
| Aisle width for pallet 800x1200mm, C=600mm | Ast(mm) | 2450 | |
| Turning radius, pedal closed | Wa(mm) | 1655 | |
| Driving speed, laden/unladen | km/h | 5.0/6.0 | |
| Lifting speed,laden/unladen | mm/s | 90/130 | 65/115 |
| Lowering speed,load/unload | mm/s | 110/130 | 85/115 |
| Maximum climbing ability, laden/unladen (S2-5min) | %(tanθ ) | ≤8/≤10 | ≤6/≤8 |
| Braking type | Electromagnetic | ||
| Drive motor power (S2-60min) | kw | 1.5 | |
| Lift motor power, (S3-15%) | kw | 2 | |
| Battery, voltage/rated capacity | V/Ah | 24/210 | |
| steering system | EPS | ||
| Battery replacement method | Side pull | ||

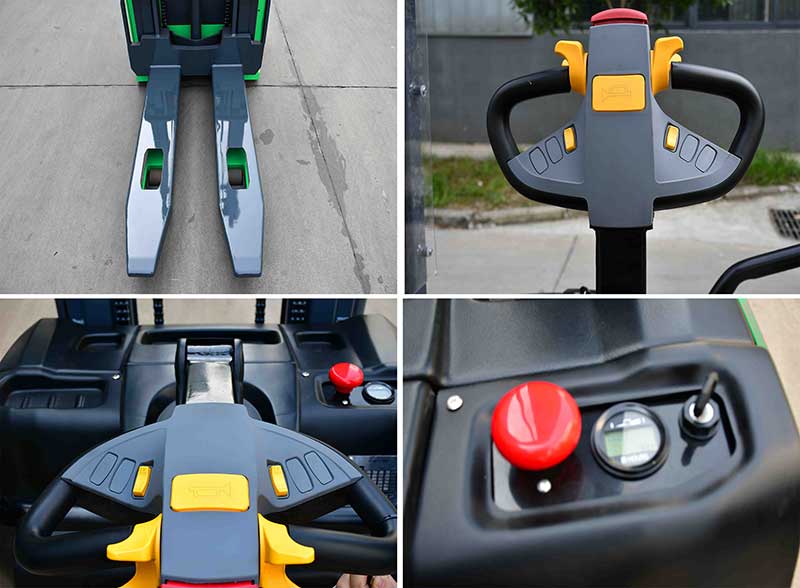

DETAILS
